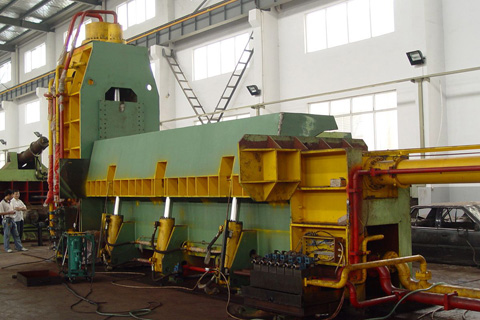

Applications:
HBS scrap shear is suitable for the cutting of both light and heavy scrap materials. Metal pieces are pressed 2- or 3-dimensionally by using the pressing lid, the wing and feeding pusher, and cut or broken into pieces.
The machine is able to:
> Pre-compress and cut scrap
> Cut bars and profiles
> Package light scrap
> Squeeze and cut car bodies
| Model | Max. Cutting Force (Ton) | Feed Opening (mm) | Bale Size (mm) | Blade Length (mm) | Production Rate (tons/hr) | Main Motor (kW) |
| HBS-500 | 500 | 4800×2240 | 650×550 | 750 | 5.5-15 | (2+1)×90 |
| HBS-630 | 630 | 6000×2500 | 720×650 | 880 | 8.0-22.0 | (3+1)×90 |
