Applications:

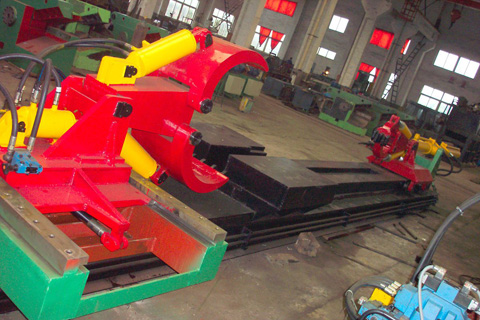

CBJ de-baler is suitable for smelting companies to dismantle scrap bales purchased from outside, and to inspect the inside of them. Some companies also use it as kind of preshredder.
| No. | TECH SPEC: De-baler CBJ-600 | ||||
| 1 | Pulling Cylinder |
Type Rated Force |
YG200/100-1600 600 kN |
Stroke Qty. |
1600 mm 1 PC |
| 2 | Clamping Cylinder |
Type Rated Force |
YG140/100-208 380 kN |
Stroke Qty. |
208 mm 4 PCS |
| 3 | Hydraulic System Pressure | 25 MPa | |||
| 4 | Electric Motor |
Type Rated Power |
Y200L2-6 22 kW |
Rated Speed Qty. |
970 r/min 1 SET |
| 5 | Piston Pump |
Type Max. Flow Rate |
160YCY14-1B 160 ml/r |
Max. Pressure Qty. |
31.5 MPa 1 SET |
| 6 | Max. De-baling Size | 1000×600×600 mm | |||
